Ruggedized UPS

FOR HARSH ENVIRONMENTS & EXTREME CONDITIONS

Product Overview

The Marathon Power Ruggedized UPS Series consists of True On-Line (Vault) and Line Interactive (Track) UPS’s with such features as UPS & power-monitoring software, integral auto-bypass, various communication options, extended run-time capability, cold start, advanced battery management and microprocessor control. With extremely wide input tolerance and operating temperature ranges our Ruggedized UPS series are the most flexible and technologically advanced UPS’s on the market.  Like our other models, our Ruggedized UPS’s are fully customizable to cater to your application.

Double Conversion Ruggedized UPS

Line Interactive Ruggedized UPS

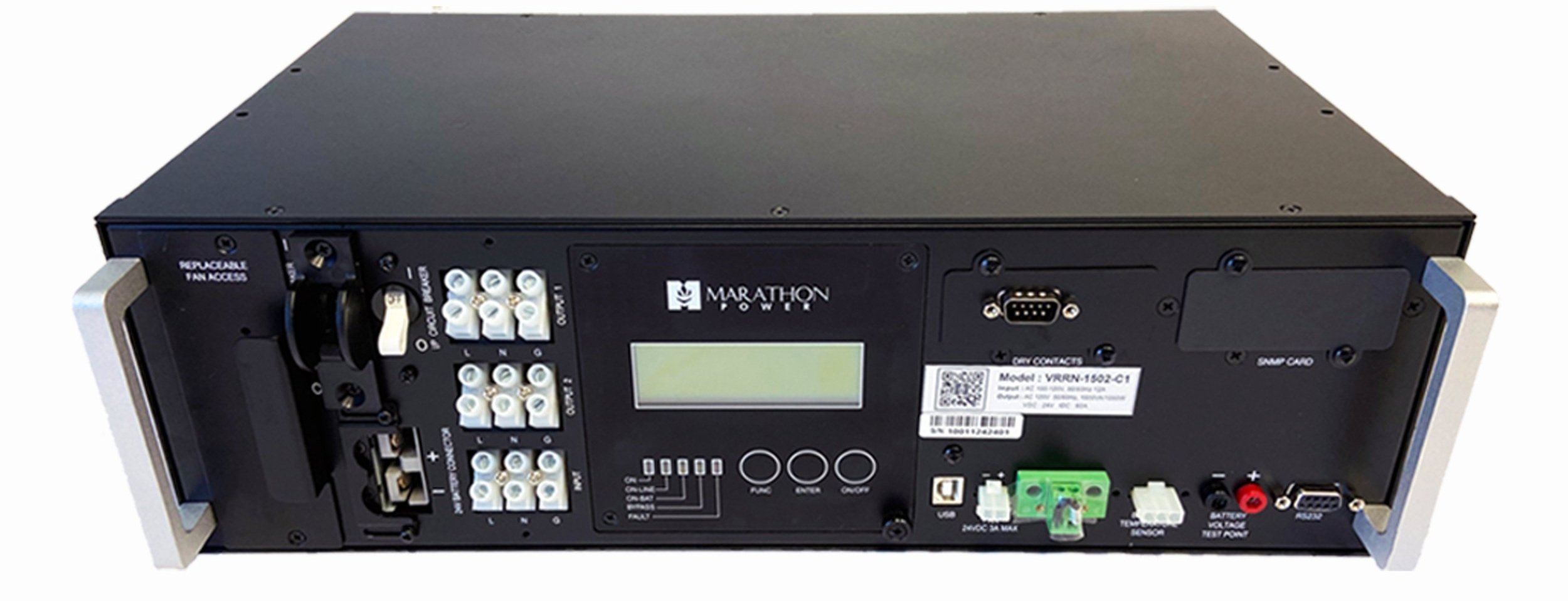

Ruggedized Vault Rackmount UPS

Product Overview

The Ruggedized Vault series is a true on-line, double-conversion design with power factor correction. Ideal for the most critical and sensitive applications where the best level of power protection is required in harsh environments. Connected equipment is immune to the slightest power fluctuations, spikes, surges, noise, extended under- and over-voltages, harmonics and frequency variations.

Part Numbers: VRRN-0700-01, VRRN-1000-01, VRRN-1500-01


Ruggedized Vault Front View_Blue Screen.png

SNMP-CY54-03
LIVE DEMO

  • • True on-line double conversion topology

    • Wide operating temperature range

    • True sine-wave output with less than 3% THD

    • Output voltage regulation to within+/- 2%

    • High Efficiency (HE) & Free-run mode

    • RS-232 & USB communication interface

    • Multi-function, interactive control panel

    • Input PF correction, frequency & bypass mode

    • "Cold Start"+ 'Gen Set compatibilty' mode

    • Event counter & timer+ Time delay relay

    • Emergency power off circuit (EPO)

  • • Traffic Enclosures

    • Control Panels

    • Custom Pedestals

    • Extreme Temperature Environments

Data Sheet & User Manual

Data Sheet

User Manual

Specifications & Technical

Specifications

UPS Reset Procedure

Drawings

Rackmount UPS Dimensional Drawings

Wiring Diagram w/ PTS

Wiring Diagram w/o PTS

Communication

NetAgent 9 SNMP Card

Accessories

Maintenance Bypass Switch

700VA-3kVA Maintenance Bypass Procedure

Battery Harness Kit VBHK-0009-36

AS-400 Relay Card

Relay Card and Interface Cable Connections

Battery Specifications

MK U1HR1500S-MK

MK 45HR2000S-MK

MK 8A24 HEI

MK 8A30 HEI

Important Battery Note

Batteries are not included with our Ruggedized models. There are NO internal batteries since there is no space inside our Ruggedized UPSs for wide temp batteries. Batteries can be purchased independently or with UPS as a separate line item.



See your Marathon Power representative for username and password.

SNMP-CY54-03 SNMP Card Installation

Ruggedized Vault Tower UPS

Product Overview

The Ruggedized Vault series is a true on-line, double-conversion design with power factor correction. They ore ideal for the most critical and sensitive applications where the best level of power protection is required in harsh environments. Connected equipment is immune to the slightest power fluctuations, spikes, surges, noise, extended under- and over-voltages, harmonics and frequency variations.

Part Numbers

VTRN-0700-C1, VTRN-1000-C1, VTRN-1500-C1

  • • rue on-line double conversion topology

    • Wide operating temperature range

    • True sine-wave output with less than 3% THD

    • Output voltage regulation to within+/- 2%

    • High Efficiency (HE) & Free-run mode

    • RS-232 & USB communication interface

    • Multi-function, interactive control panel

    • Input PF correction, frequency & bypass mode

    • "Cold Start"+ 'Gen Set compatibility' mode

    • Event counter & timer+ Time delay relay

    • Emergency power off circuit (EPO)

  • • Traffic Enclosures

    • Control Panels

    • Custom Pedestals

    • Extreme Temperature Environments

Data Sheet User & Manual

Data Sheet

User Manual

Specifications & Technical

Specifications

UPS Reset Procedure

UPS Maintenance and Precautions

700VA -3kVA Maintenance Bypass Procedure

Drawings

Tower UPS Dimensional Drawings

Communication

NetAgent 9 SNMP Card

Accessories

AS-400 Relay Card

Maintenance Bypass Switch

Relay Card and Interface Cable Connections

Battery Harness Kit TBHK-0009-24

Battery Harness Kit VBHK-0009-36

Battery Specifications

MK U1HR1500S-MK

MK 45HR2000S-MK

MK 8A24 HEI

MK 8A30 HEI

Important Battery Note

Batteries are not included with our Ruggedized models. There are NO internal batteries since there is no space inside our Ruggedized UPSs for wide temp batteries. Batteries can be purchased independently or with UPS as a separate line item.


ruggedized vault tower.png

SNMP-CY54-03
LIVE DEMO

See your Marathon Power representative for username and password.

SNMP-CY54-03 SNMP Card Installation

Ruggedized Track UPS

Suitable for wide temperature range applications and ideal for harsh environments.

The Marathon Power Ruggedized Traffic UPS series are maximum performance systems suitable for a wide range of transportation applications and extreme temperature environments. Designed for extended run-times, these units also feature temperature compensated charging to maximize battery life in harsh environments. The units are extremely versatile and fully programmable to give complete control of system programming and data acquisition. They can also be customized to meet the requirements of your transportation application, making our units the most versatile battery back-up solution for traffic control and public safety.

Part Number TRTC-2000-N1

  • • Suitable for wide temp range applications (-37°C to +74°C}.

    • Ideal for environmentally harsh outdoor locations.

    • Fits in all types of traffic enclosures, control panels and custom pedestals.

    • Low harmonic AC sine wave output in backup mode.

    • Fully programmable AC threshold voltages.

    • External connections accessible from the front panel.

    • Six fully programmable dry contacts for greater control.

    • Back-lit LCD display and LED indicators.

    • Remote access via RS-232, USB & Network.

    • Time / Date stamp of events and alarms - up to l 00 events.

    • Temperature-compensated charging.

  • • Traffic Controls

    • Signal Equipment

    • Transportation Equipment

    • Automated Parking Facilities

    • Electronic Tolls

    • Transportation Signs

Data Sheet & User Manual

Data Sheet

User Manual

Specifications

Specifications

Drawings

Dimensional Drawings

Communication

NetAgent 9 SNMP Card

Accessories

Ruggedized Extended Battery Pack

Manual Power Transfer Switch

Maintenance Bypass Switch with Generator

Universal Rack Mount Rail

Rack Mount Mounting Brackets

Battery Harness Kit

Battery Specifications

MK U1HR1500S-MK

MK 45HR2000S-MK

MK 8A24 HEI

MK 8A30 HEI

Important Battery Note

Batteries are not included with our Ruggedized models. There are NO internal batteries since there is no space inside our Ruggedized UPSs for wide temp batteries. Batteries can be purchased independently or with UPS as a separate line item.



SNMP-CY54-04
LIVE DEMO

See your Marathon Power representative for username and password.

SNMP-CY54-04 SNMP Card Installation

ruggedized EBP

EXTERNAL BATTERY PACKS / MODULES

In addition to our standard external battery pack and individual battery options, we also offer standard or wide temperature batteries in a ruggedized, custom enclosure. The enclosure is a rack- or shelf- form factor that is 17” wide and 3U in height. There are two depths available, depending on run-time requirements and battery choice. They feature an LED display to show the status of the internal battery voltage and can be configured for various DC bus voltages to match most of our UPS’s to which they will be connected.

Many configurations are available, please contact us for further details or with your specific requirements.

Features & Benefits

• Enclosed DC System for Safety

• Rack or Shelf Mount

• Wide Temperature Rating (using suitable batteries)

• External DC Circuit Breaker

• LED Voltage Display

• Battery Temperature Sensor and Probe

• Front and Rear Mount Connection Options

• Various DC Voltages Ranging From 24VDC ~ 96VDC

• Ruggedized Chassis
