Vault Series UPS

700VA - 12kVA TRUE ON-LINE UPS

Product Overview

True on-line, double-conversion technology with power factor correction. These models are deal for the most critical and sensitive applications where the best level of power protection is required. Connected equipment is not only immune to even the slightest power fluctuations, but is also protected from other power anomalies such as spikes, surges, noise, extended under- and over-voltages, harmonics and frequency variations.

• True sine-wave output with less than 3% THD
• Output voltage regulation to within +/- 2%
• High Efficiency (HE) & Free-run mode
• EPO (Emergency Power Off) port
• Power monitoring & UPS control software
• RS-232 & USB communication interface
• Multi-function, interactive control panel & LCD display
• Input power factor correction, freq. & bypass mode
• “Cold Start” power-up & ‘Gen-Set compatibility’ mode
• External battery pack connector (for matching EBP’s)
• Optional SNMP & AS/400 dry-contact card slot

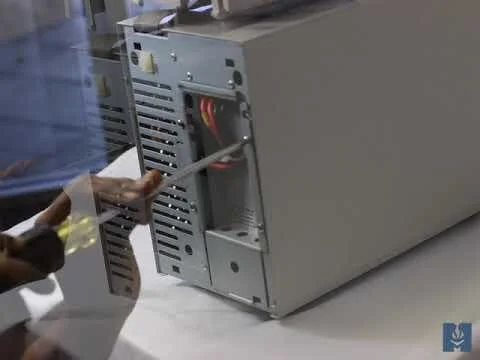

• “Hot-swappable” battery modules
• 50/60Hz frequency auto-sensing (or free-run)
• Overload & short-circuit protection
• LED indicators & programmable audible alarms
• AC and network (RJ-45) surge protection
• Medical & Imaging*
• Industrial Automation
• Process & Motion Control
• Laboratory, Test & Measurement
• OEM
• Communications & Guidance
• Security & Safety
• Financial & Banking
• Information Technology
• Lighting and Commercial Control
• Telephony*
*Our Vault Series units are suited for many applications within the medical and healthcare environment, however they are not certified for use with life support systems and other critical care devices.
